The Production Flow Chart of Ductile Iron Pipes
proimages/ability/02/00.jpg

1.Molten

The raw materials are molten in electric induction furnace. The temperature and composition of the molten iron are monitored and controlled in the holding furnace.
proimages/ability/02/01.jpg

2.Desulfurizing, Spheroidizing and Inoculation Treatments

The molten iron is treated with magnesium and become spheroidized.
proimages/ability/02/02.jpg

3.Centrifugal casting

Two methods are applied in the centrifugal casting: one is metal mold water-cooling process, the other is wit-spray hot mold process.
proimages/ability/02/03.jpg

4.Continuous heat treatment

After casting, the pipe is sent to the heat treatment furnace to change its metallographic structure.
proimages/ability/02/04.jpg

5.Test and inspection

After mechanical processing, metallographic examination, flattening test, hydrostatic pressure test and scale inspection are applied.
proimages/ability/02/05.jpg

6.Inspection and Testing

After inspection, the internal of pipe is applied with a cement mortar lining or epoxy powder coating.

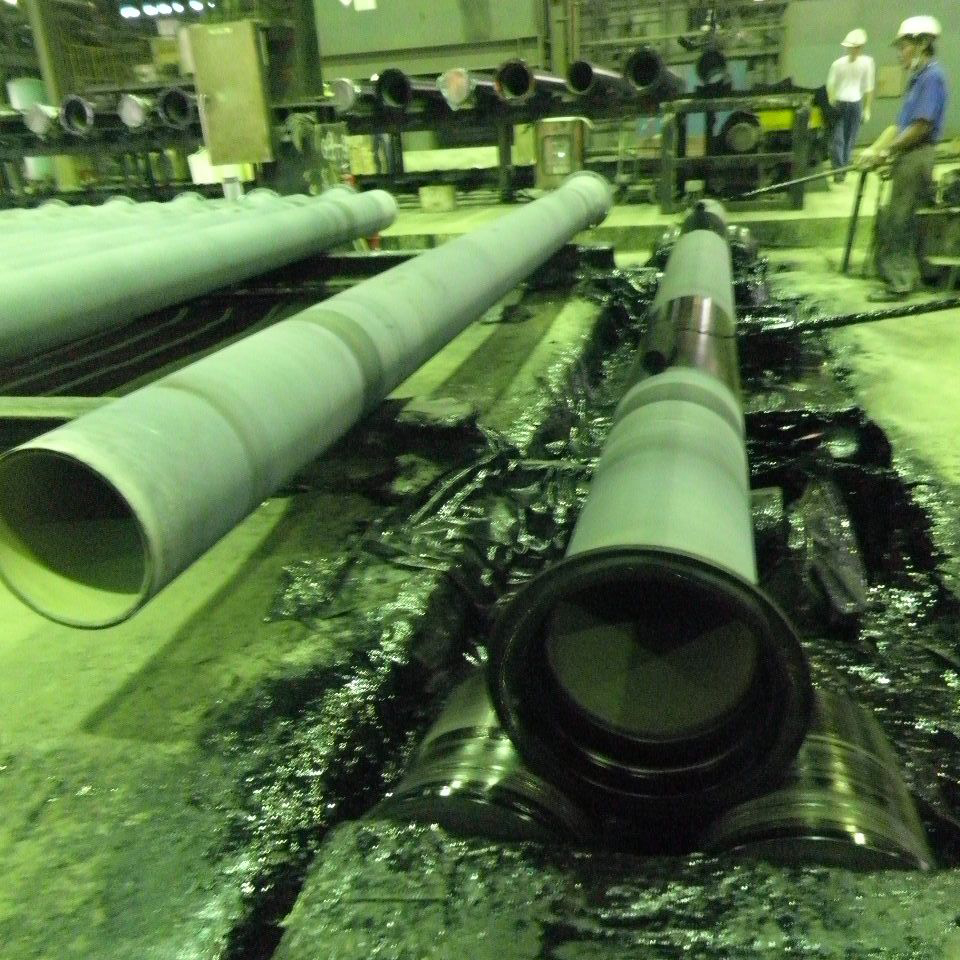

proimages/ability/02/06.jpg

7.Lining, Coating and Final Inspection

The outside of pip is applied with metallic zinc, on top of metallic zine, bitumen paint is applied.
The Production Flow Chart of Ductile Iron Fittings
proimages/ability/02/B1.JPG

1.Molten

The raw materials are molten in electric induction furnace. The temperature and composition of the molten iron are monitored and controlled in the holding furnace.
proimages/ability/02/B2.JPG

2.Modeling and casting

The molten iron is treated with magnesium and become spheroidized.
proimages/ability/02/B3.JPG

3.Modeling and casting

According to the size of fittings: Either furan resin sand molding method or cement molding method is applied.
proimages/ability/02/B4.JPG

4.Spray cleaning and machining

After the casting is taken out, the casting is sprayed and grounded, and then machine processed.
proimages/ability/02/B5.JPG

5.Test and inspection

After mechanical processing, metallographic examination, flattening test, hydrostatic pressure test and dimensional inspection are applied.
proimages/ability/02/B6.JPG

6.After inspection, the internal surface of fitting is applied with epoxy powder coating.
proimages/ability/02/B7.jpg

7.The external surface of fitting is applied with metallic zinc and bitumen coating.
